The design of the door affects the volume, space utilization and usage scenarios of the refrigerator, and is an important symbol to distinguish the appearance and structure in the production of the refrigerator assembly line. For example, single-door refrigerators, double-door refrigerators, multi-door refrigerators, etc.

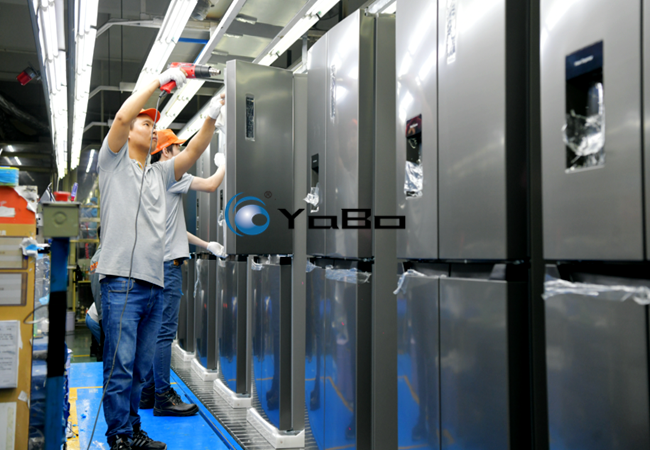

I.The refrigerator production line is the core facility to realize large-scale and standardized production of refrigerators. As two key conveying equipment, the plate chain line and the roller line are responsible for material transportation and process connection tasks in different links in the assembly line.

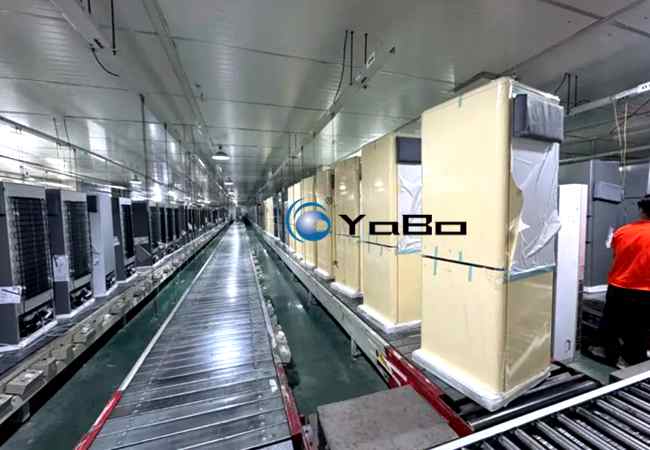

II.The plate chain line is the core equipment in the refrigerator assembly line that undertakes heavy load and high-precision conveying tasks. It consists of high-strength metal chain plates and achieves continuous operation through chain drive. Its distinctive feature is its strong load-bearing capacity. A single chain plate can carry a weight of more than 200kg. It can stably transport various heavy-loaded workpieces from empty boxes to foamed heavy boxes (80-150kg), and the conveying surface is flat and matched with positioning tooling to ensure that the workpiece does not shake during the assembly process, accurately meeting the accuracy requirements of key processes such as evaporator fixing, pipeline laying, and door body installation. At the same time, it is resistant to wear and has a long life. It can achieve speed-adjustable transportation of 0.5-3m/min through speed reducers and motors. It is widely used in pre-assembly sections, foaming sections and core parts of final assembly. It is the key to ensuring the orderly advancement of heavy-load processes.
III.The roller line has flexible transportation as its core advantage. The conveying surface is composed of powered or non-powered rollers, and the workpiece is driven to move through the rotation of the rollers. Its structure is flexible and can be designed into turning, lifting, etc., saving workshop space, low noise and good protection to the appearance of workpieces. The polyurethane roller can effectively avoid scratching the exterior parts of the refrigerator. According to different needs, the power roller is suitable for long-distance automated transportation, and the unpowered roller is suitable for short-distance manual auxiliary operation. The transportation speed can be adjusted to 3-10m/min through the frequency converter, which is perfectly suitable for the pre-assembly auxiliary transportation of parts and components, and the light operation process after final assembly., the connection between the inspection and packaging section, and the diversion and temporary storage of finished products cooperate with the plate chain line to form an efficient production process of "plate chains for heavy loads and rollers for light loads".
